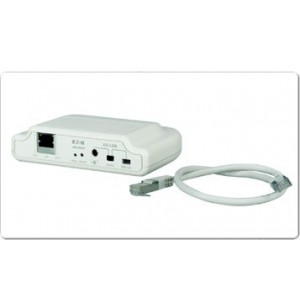

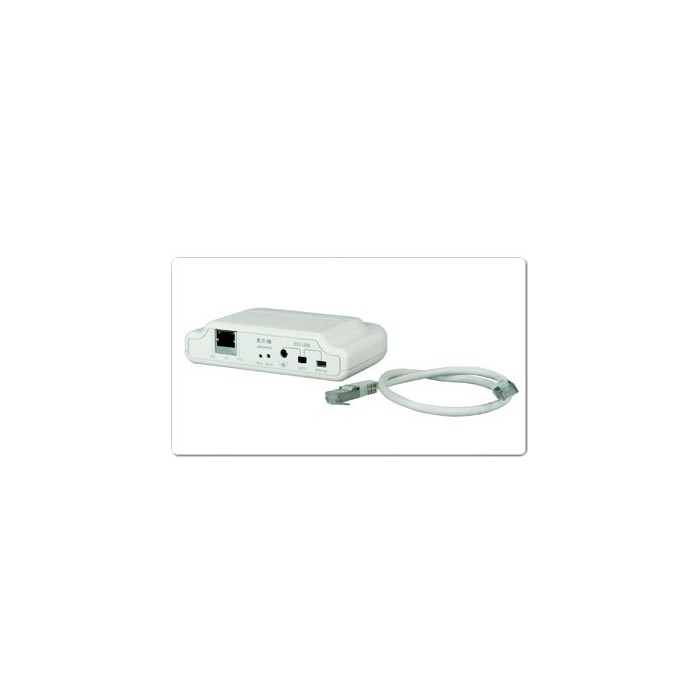

CCIA-02/01 LAN Comms Unit

Eaton CCIA-02/01

Wireless LAN communication interface, without PoE

• Networking xComfort in large buildings
• ECI for communication between xComfort - Ethernet
• Use the existing LAN infrastructure of the building
• Routing of wired xComfort
• Centralized visualization, such as 3rd-party application

Eaton is currently expanding its X Comfort Product Portfolio to another building block - the Ethernet Communication Interface (ECI). Users can use this single X Comfort wireless solution to connect within a building over an Ethernet network. ECI also allows the easy expansion of individual components in commercial buildings. The ECI is available in three versions: Wi-Fi, wireless LAN and PoE (Power over Ethernet). While the wireless LAN needs an additional power supply, the Poe Land requires no separate power supply, because the supply is via Ethernet.

General Features

• Configuration of ERF 2.0x or higher
• LAN network with a fixed IP address (IPv4 and IPv6)
• ECI's 255 Max per system
• Max 255 LAN routing paths for each ECI, encrypted
• up to 99 data points for 3rd party applications
• No master requires

Notes

The ECI is available in three versions: Wi-Fi, wireless LAN and PoE (Power over Ethernet).

Specifications

• Frequency - 868'300 MHz
• Operating temperature - 5 to +50 ° C
• Protection class - IP 20
• Power - external power supply 5-24V / 2.5 W
