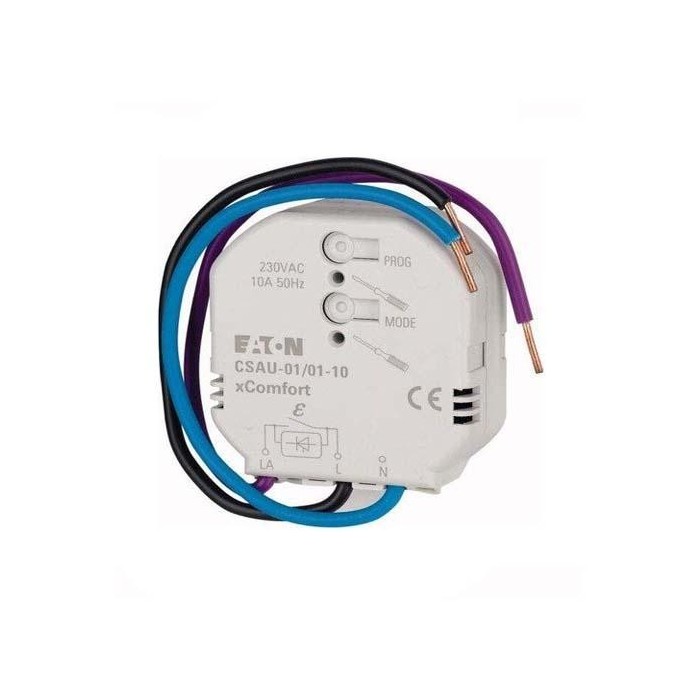

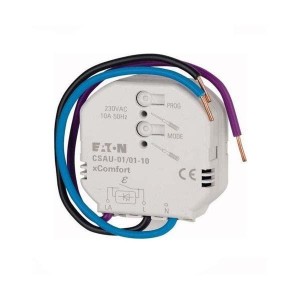

CSAU-01/01-10 Switching Actuator, compact 18mm depth with enhanced features and robust design
This product is no longer in stock
New Switching Actuator CSAU-01/01-10, compact, robust and with enhanced features. Switch any devices such as lights, ventilation, heating, alarms etc.
With a compact 18mm depth the switching actuator can be easily mounted in a switch, branch or installation box or directly into lamp cover.
The new generation of actuators offers users the opportunity to operate more efficient and more cost-saving by the RF installation. The new switching – actuators are significantly smaller and still they have much more advantages:
• Robust solution, high switching capability 10A
• Optional Switch Input - Increases flexibility, reduces costs, use existing switches
• Optional Energy Sensor-Measures the energy-consumption
• Additional Functions - For Basic-Mode Installers
• Reduced Power Consumption - To be “Green”
• Combination of Relay & Semiconductor Switch (Eaton Patented Hybrid switching technology)
• Can handle inductive and capacitive loads
• Extended Status Messaging (Routable, e.g. Smart Home Controller)
The size of the new actuators is much easier to implement inside an existing installation. The actuators will be placed easily behind existing sockets and switches.
By using the new integrated metering function you will be permanently informed about the energy consumption, where the design and the period can be changed. With the help of the Smart Home Controller it is possible to display the information on mobile devices.
|Power supply||230VAC, 50Hz|
|Switching technology||Eaton Patented Hybrid switching technology|
|Load switching||The device switches L via LA 230VAC, 50Hz, 10A RLC load|
|Internal protection||Overvoltage, temperature (load will be disconnected)|
|Pre-protection||Power circuit breaker 16A, characteristic C|
|Type of transmission||Bi-directional, via coded telegrams|
|Indoor range||Typically 30 - 50m, 2 walls + 1 ceiling (depending on wall thickness and material !!)|
|Degree of protection||IP20|
|Degree of soiling||2|
|Operating temperature||-5 to +55°C|
|Storage /transportation temp.||-25 to +70°C|
|Colour of the frame Grey||RAL7035|
|Size of the frame HxWxD||49.5 x 45.5 x 18mm|
|Length of connection wires||150mm|
|Approval||Printed onto the device|
