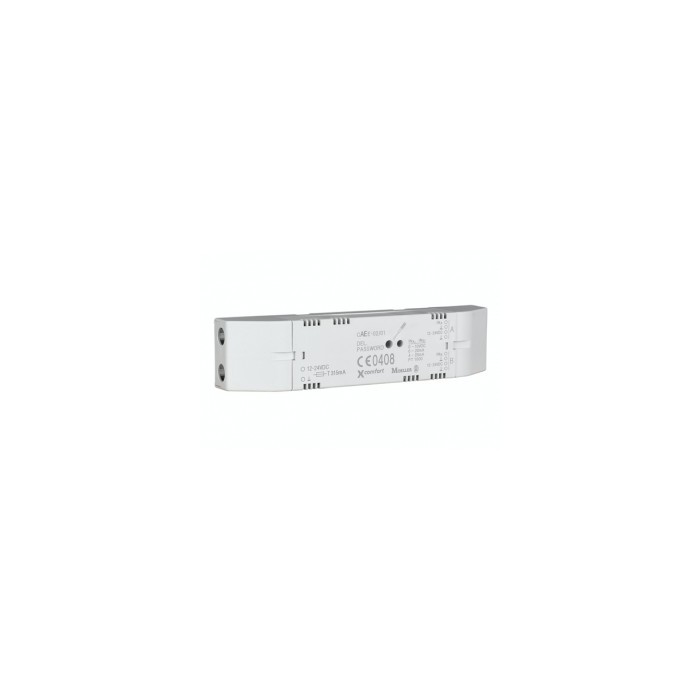

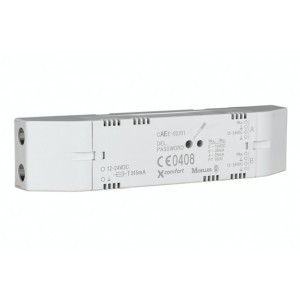

CAEE-02/01 2 Channel Input

This device will interpret any industry standard sensor and relay the data wirelessly to a device to be controlled, as simple example would be temperature sensors controlling the heating of a particular area of a building.

Thanks to universal sensors (0-10VDC, 0-20mA, 4-20mA) the 2-channel analogue input can receive different measuring values (e.g. air quality, humidity, direction of the wind etc.) or the temperature (PT1000 sensor, 265643) and transmit them to the convenient electrical installation system. Power is supplied by a separate 24VDC power supply unit (110772 or 110773, not included, must be purchased separately). The 24VDC supply is looped through the analogue input twice and is therefore also available for the supply of the active sensors. The correct setting for each channel has to be carried out depending on the connected sensor.

Attention: Carefully check maximum load and correct power supply! The device can be mounted in a branch-off or installation box.

Attention: To precisely measure and display the values, please use a reference.

0-10VDC, 0-20mA, 4-20mA, PT1000

CAEE-02/01

• Power supply 12-24VDC, external power supply unit
• Power consumption 0.25VA (without sensors)
• Power supply for sensors External power supply unit looped through the device
• Fine-wire fuse in the device T 315 mA
• Inputs: IN1, IN2 0-10VDC, 0-20mA, 4-20mA, PT1000 in MRF configurable for each input
• Frequency 868,300 MHz
• Type of transmission Bi-directional, via coded telegrams
• Indoor range Typically 30 - 50m, 2 walls + 1 ceiling (depending on wall thickness and material !!)
• Degree of protection IP20
• Degree of soiling 2
• Operating temperature -5 to +45°C
• Storage /transportation temp. -25 to +70°C
• Colour of the frame Grey, RAL7035
• Size of the frame HxWxD - 150 x 34 x 28mm
• Approval Printed onto the device
