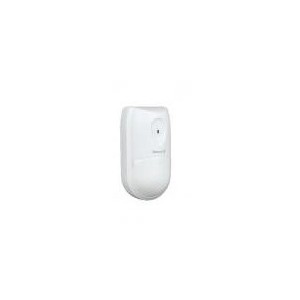

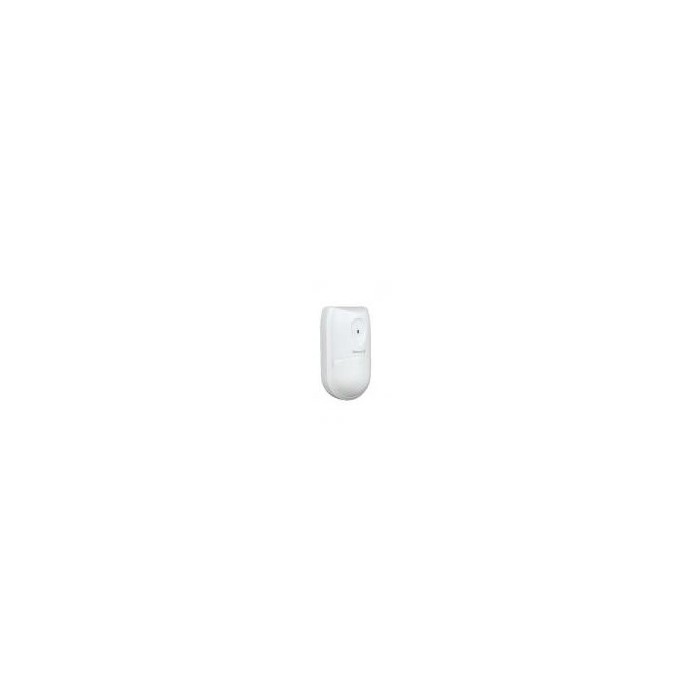

CBMA-02/01 PIR Motion Sensor

CBMA-02/01 PRM Motion Sensor

This PIR-motion sensor is designed to sense movement inside a building. Power supply is

provided either through two AAA-batteries or through a power supply unit (not included in the scope of delivery), therefore it is easy to fix it wherever you need it.

To make it easy for you to do setting, we provide an adjustable “mounting support” Channel A (for lighting) transmits a switching command depending on the movement that has been detected, on the brightness and on the time-setting for the light to shut off again. Channel B (for alarm functions) transmits a switching command when movement is detected, irrespective of brightness and time-setting for switch-off (channel B is activated for approx. 145 seconds).

The setting for the number of impulses to be analysed before triggering an alarm or transmitting a switching command can be done for both channels at the same time. All the settings can be carried out directly on the device, with the front cover removed. A light emitting diode (LED) makes the job of setting the sensor easier.
