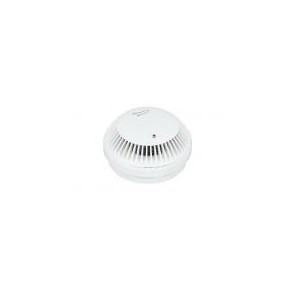

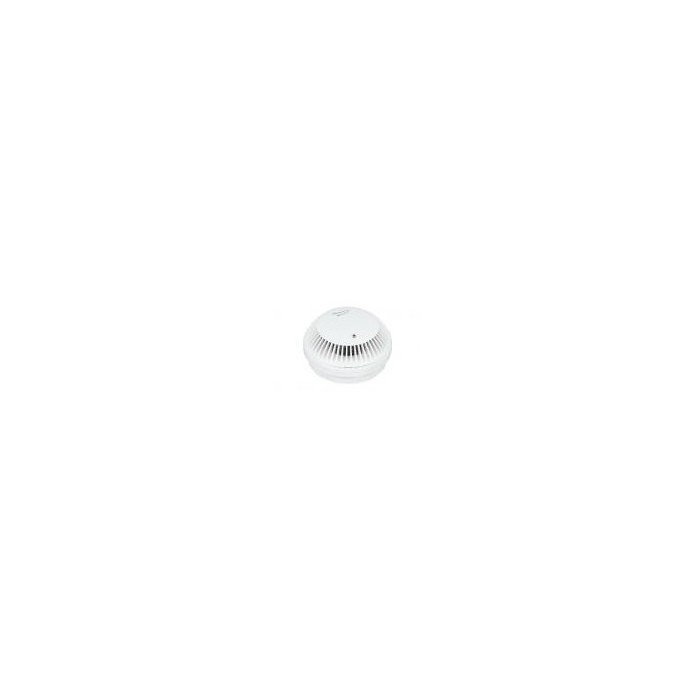

CSEZ-01/19 Smoke Detector

Detects smoke according to the stray light principle and triggers an optical (red LED) and an acoustic alarm (buzzer).The alarm continues as long as smoke is detected.The smoke detector is powered by a 9V battery (6LR61). An optical and an acoustic signal will tell you when it is time to replace the battery or to clean the smoke detector. Apart from an automatic self-test, a test button will allow you to carry out a functions test of the device manually. Attention:When an alarm is triggered or a test is carried out and you are too close to the smoke detector, it might harm your hearing!!! In order to integrate the smoke detector into EATON’s RF system, the adapter module (110770) must be plugged into the smoke detector and then connected to the binary input 2x signal contact (265627) in mode 2. Using it with binary input 2x230VAC (265626) is NOT authorized!!!

Attention: Make sure the wiring is correct!

Battery is included in the scope of delivery.
