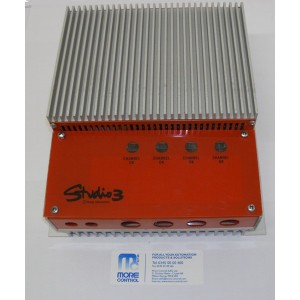

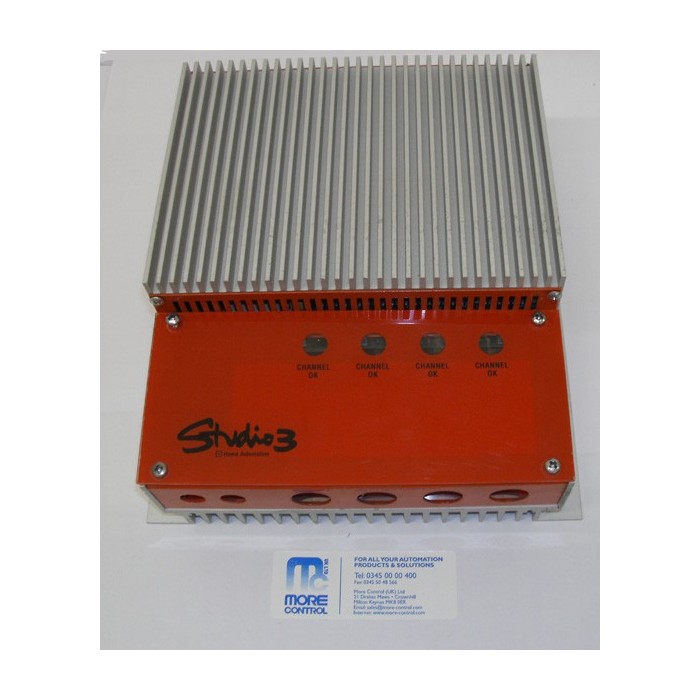

HA7015 Studio Channel Dimmer

Studio 3 5A x 4 channel universal dimmer pack - 200/250V AC 50Hz selectable between 2 groups of addresses (1-4 and 5-8)

Suitable for:
• Mains voltage tungsten/tungsten halogen lighting
• Most electronic dimmable transformers
• Wire wound laminated or toroidal transformers
• Old style fluorescent luminaires of the EL-FD & UDT type.
For PCI and 1-10V fluorescent luminaires see page 202
and for DSI see page 203.
• Lamp life is extended with a one second soft start feature
• Specifically designed for remote mounting

HA7015
• 5A per channel
• Adjustable fade rates (up to 8 minutes) for some
controller functions
• Set during installation on one of two groups of four channels
(i.e. addresses 1-4 or 5-8)
Dimensions: 260mm x 243mm x 100mm
