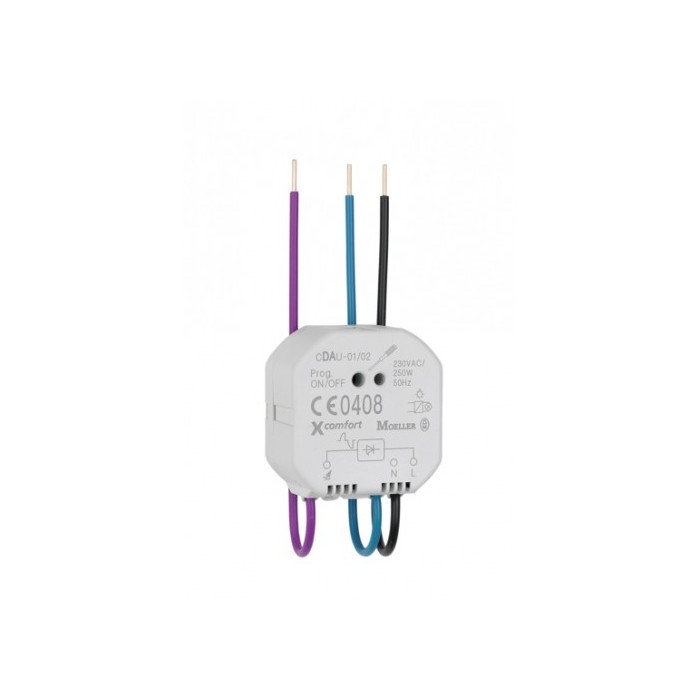

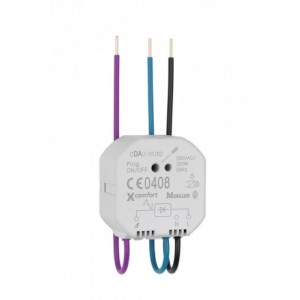

CDAU-01/02 Dimming Actuator

This device takes its signlas via the wireless network usually from a dimmer switch although analogue units can also be used, it will dim most standard household lamps.

The dimming actuator receives signals and switches/dims incandescent lamps and electronic transformers for low-voltage halogen lamps (DO NOT USE inductive loads!). Power supply is from the mains. The device can be mounted in installation boxes for switches, in branch-off boxes, standard installation boxes or directly inside the cover of the light fixture. With last value memory you do not need to worry about resetting the light levels everytime you switch the lights on.

250W/230VAC

CDAU-01/02

Technical Specifications

• Power supply 230VAC, 50Hz
• Connections Single-wired 1.5mm² connections
• Load CDAU-01/02 230VAC, 50Hz, 250W incandescent lamps or electronic transformers, trailing-edge, NO inductive LOAD!!!
• Pre-protection Power circuit breaker 16A, characteristic C
• Internal overload and short-circuit protection
• Frequency 868,300 MHz
• Type of transmission Bi-directional, via coded telegrams
• Indoor range Typically 30 - 50m, 2 walls + 1 ceiling (depending on wall thickness and material !!)
• Degree of protection IP20
• Degree of soiling 2
• Operating temperature -5 to +45°C
• Storage/transportation temp. -25 to +70°C
• Colour of the frame Grey, RAL7035
• Dimensions of the frame HxWxD - 48.6 x 45.3 x 26.2mm
• Length of the connection wires 150mm
• Approval Printed onto the device
• Reduction of power see next page.
