CDAE-01/01 Dimming Actuator View larger

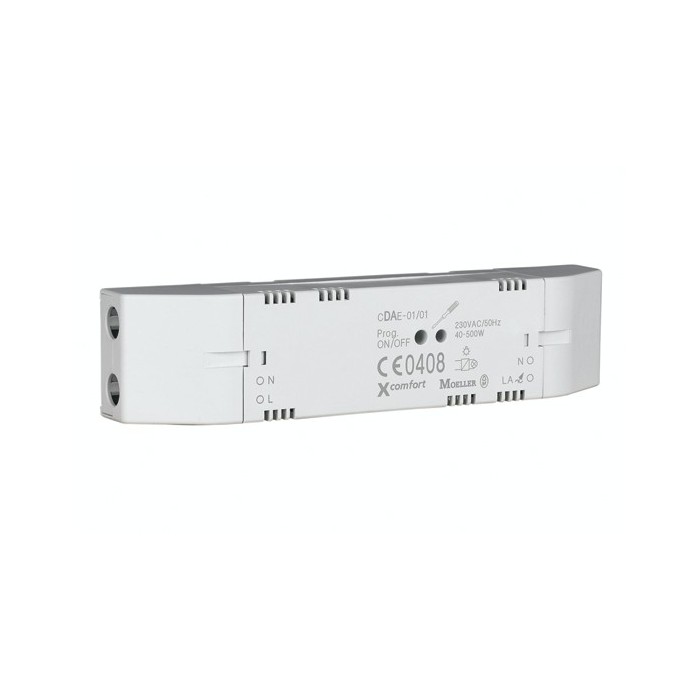

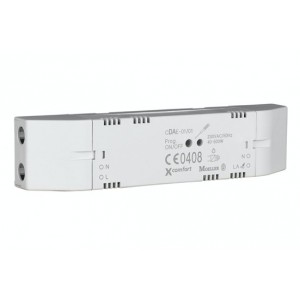

CDAE-01/01 Dimming Actuator

MC0232-0012

109373

New

This device will dim most standard household lamps taking its signals from a number of wireless devices such as dimmer switches and analogue input units.





More details

More info

Dimming actuator bus system 40-500W Mounting method Built-in installation, Number of outputs 1, Output power 40-500W, Type of load Capacitive, Degree of protection (IP) IP20,

This device will dim most standard household lamps taking its signals from a number of wireless devices such as dimmer switches and analogue input units.

The dimming actuator receives wireless signals and switches/dims incandescent lamps and electronic transformers for low-voltage halogen lamps (DO NOT USE inductive loads!). Power supply is from the mains. The device can be mounted in branch-off boxes, standard installation boxes or directly in an intermediate ceiling. The dimming actuator is also equipped with a last-value memory this saves you  re-setting the light level everytime you switch the light on.

Control is from a standard wireless dimmer switch via the xComfort wireless mesh network.

40-500W/230VAC

CDAE-01/01

Technical Specifications

  • Power supply 230VAC, 50Hz
  • All connections Single-wired 1.5mm² connections
  • Load CDAE-01/01 230VAC, 50Hz, 40-500W incandescent lamps or electronic transformers, trailing-edge, NO inductive LOADS!!! Internal overload and short-circuit protection
  • Pre-protection Power circuit breaker 16A, charateristic C
  • ATTENTION: Keep at least 35 mm distance in case several devices are used. Do not place the device near heat sources (transformers, halogen lamps etc.), keep a distance of approx. 200 mm. Do not place dimm ing actuators on top of each other. Allow for sufficient heat draw-off. Check max. operating temperature, reduce power where necessary (see wiring diagram)
  • Frequency 868,300 MHz
  • Type of transmission Bi-directional, via coded telegrams
  • Indoor range Typically 30 - 50m, 2 walls + 1 ceiling (depending on wall thickness and material !!)
  • Degree of protection IP20
  • Degree of soiling 2
  • Operating temperature -5 to +45°C
  • Storage /transportation temp. -25 to +70°C
  • Colour of the frame Grey, RAL7035
  • Size of the frame HxWxD - 150 x 34 x 28mm
  • Length of the connection wires 150mm
  • Approval Printed onto the device

*) As a general rule, only “dimmable“ energy-saving lamps or “dimmable” LED lamps suitable for reversed phase control dimming can be dimmed. This is explicitely stated on the packaging. The dimming result may to a large extent depend on the type of lamps or LEDs used, or on the manufacturer. An insufficient dimming result in connection with energy-saving lamps is not a reason for complaint about the CDAE-01/02 dimming actuator, it will not be accepted as such and is therefore excluded from every type of warranty.
