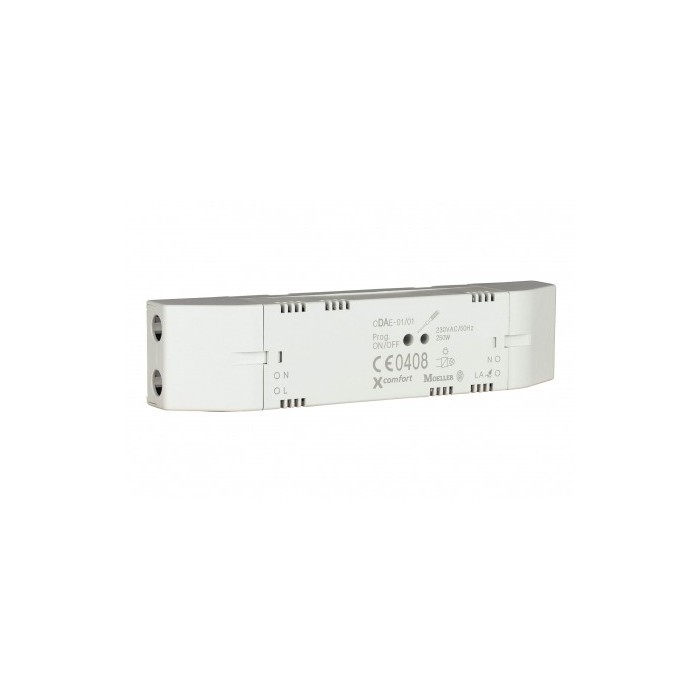

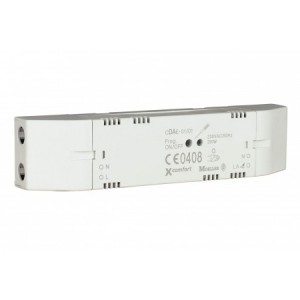

CDAE-01/02 Dimming Actuator

Dimming Actuator CDAE-01/02 (preferred dimmer for use with LED lamps)

RF dimming actuator for switching/dimming 250W (reversed phase control) 230VAC For switching/dimming incandescent lamps and electronic LV halogen transformers (no indirect loads). 250W/230VAC ;

Outputs: 1, Color: Light Gray, Power supply: 230VAC / 50Hz, frequency: 868.300MHz, Operating temperature: -5 to +45 ° C. Protection class: IP20, load: 250W, HxWxD: 150x34x28mm

This device will dim most standard household lamps taking its signals from a number of wireless devices such as dimmer switches and analogue input units.

The dimming actuator receives wireless signals and switches/dims incandescent lamps and electronic transformers for low-voltage halogen lamps (DO NOT USE inductive loads!). Power supply is from the mains. The device can be mounted in branch-off boxes, standard installation boxes or directly in an intermediate ceiling. The dimming actuator is also equipped with a last-value memory this saves you  re-setting the light level everytime you switch the light on.

Control is from a standard wireless dimmer switch via the xComfort wireless mesh network.

250W/230VA

Technical Specifications

• Power supply 230VAC, 50Hz
• All connections Single-wired 1.5mm² connections
• Load CDAE-01/02 230VAC, 50Hz, 250W incandescent lamps or electronic transformers, “dimmable“ energy-saving lamps or LED lamps for reversed phase control dimming*), trailing-edge, NO inductive LOADS!!! Internal overload and short-circuit protection
• Pre-protection Power circuit breaker 16A, charateristic C
• ATTENTION: Keep at least 35 mm distance in case several devices are used. Do not place the device near heat sources (transformers, halogen lamps etc.), keep a distance of approx. 200 mm. Do not place dimm ing actuators on top of each other. Allow for sufficient heat draw-off. Check max. operating temperature, reduce power where necessary (see wiring diagram)
• Frequency 868,300 MHz
• Type of transmission Bi-directional, via coded telegrams
• Indoor range Typically 30 - 50m, 2 walls + 1 ceiling (depending on wall thickness and material !!)
• Degree of protection IP20
• Degree of soiling 2
• Operating temperature -5 to +45°C
• Storage /transportation temp. -25 to +70°C
• Colour of the frame Grey, RAL7035
• Size of the frame HxWxD - 150 x 34 x 28mm
• Length of the connection wires 150mm
• Approval Printed onto the device

* As a general rule, only “dimmable“ energy-saving lamps or “dimmable” LED lamps suitable for reversed phase control dimming can be dimmed. This is explicitely stated on the packaging. The dimming result may to a large extent depend on the type of lamps or LEDs used, or on the manufacturer. An insufficient dimming result in connection with energy-saving lamps is not a reason for complaint about the CDAE-01/02 dimming actuator, it will not be accepted as such and is therefore excluded from every type of warranty.
