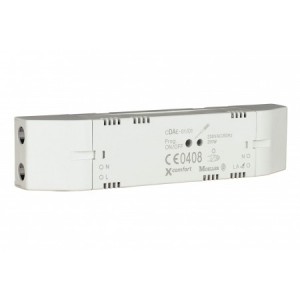

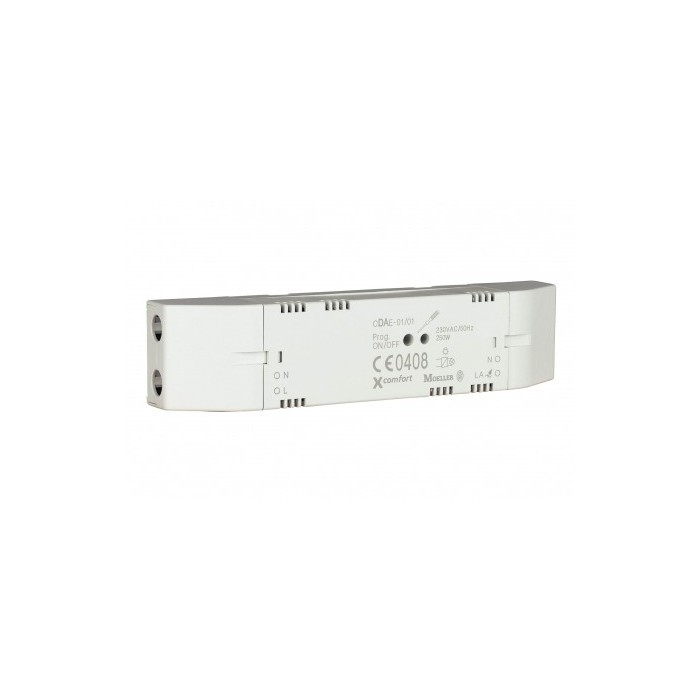

CDAE-01/03 Dimming Actuator View larger

CDAE-01/03 Dimming Actuator

MC0230-0009

143093

New

Dimming Actuator CDAE-01/03 phase dimmer 250W (pre set dimming range 0-55%) dims incandescent lamps & electronic transformers for low-voltage halogen lamps (preferred dimmer for use with LED lamps)







More details

More info

The Dimming Actuator CDAE-01/03 will dim most standard household lamps taking its signal from a number of wireless devices such as dimmer switches and analogue input units.

For use with incandescent lamps and electronic transformers for low voltage halogen lamps (DO NOT USE inductive loads). Power supply is from the mains. The Dimming device can be mounted in branch off boxes, standard installation boxes or directly in an intermediate ceiling.

The dimming actuator is also equipped with a last-value memory this saves you re-setting the light levels every time you switch the light on.

  • Outputs: 1,
  • Colour: Light Grey,
  • Power Supply 230VAC / 50Hz,
  • frequency 868.300MHz,
  • Operating temperature: -5 to + 45 ° C
  • Protection class: IP20,
  • Load: 250W (pre set dimming range 0–55%)
  • HxWxD: 150x34x28mm

Control is from a standard wireless dimmer switch via the xComfort wireless mesh network.







5 other products in the same category:

Download

CDAE-01/02 & 03 Dimming Actuator

CDAE-01/02 & CDAE-01/03 Dimming Actuator Instruction Sheet

Download (506.36k)
