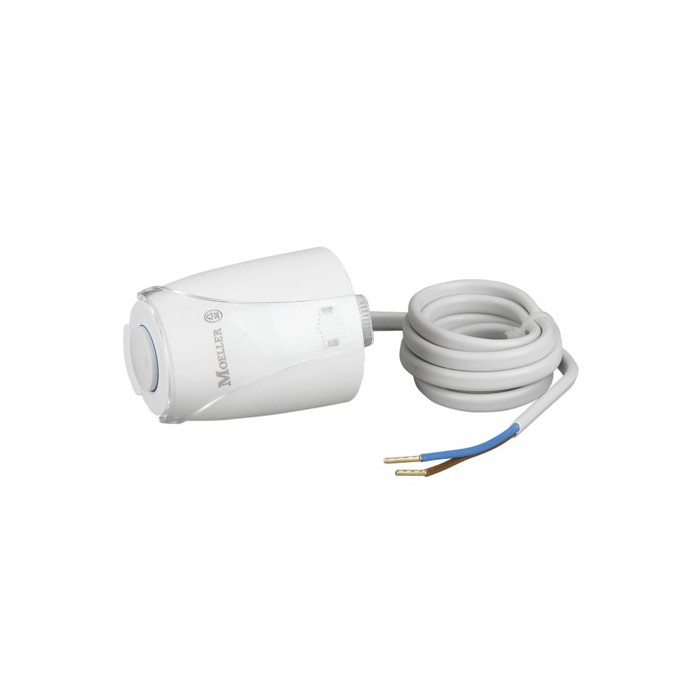

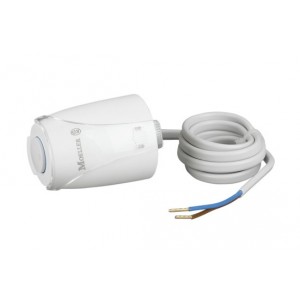

CHVZ-01/01 Radiator Valve

The thermoelectric radiator valve is used for controlling radiators, under-floor heating etc.

A simple on off radiator valve controller, allowing you to control the temperature in a room when used in conjunction with a CSAU-01/01 switching actuator. The valve is simply fitted in place of the TRV valve and when wired into the CSAU-01/01 can be controlled either with a simple room controller or as part of a complete house automation system.

ATTENTION: Adapters need to be ordered separately depending on
the fixtures you use, so they are not part of the scope of delivery! The switching status,
i.e. whether the valve is open or closed, and the adjustment check while bringing the
device into service are visually displayed. If the radiator valve is not energized, the valve is
closed (except in the delivery status of the device - First Open Function).

2W, 230VAC, NC

CHVZ-01/01
