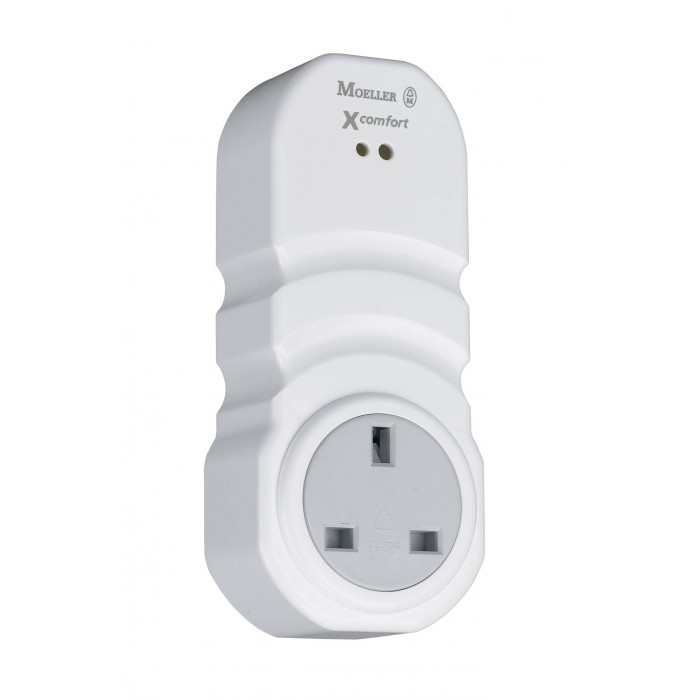

CDAP-01/13 Dimming Adapter Plug

The "Dimming Actuator" adapter plug receives signals and controls and dims devices such as floor-standing lamps. It is mains-supplied, can be plugged into an existing "British Standard (three pin) wall socket" and does not require any wiring work.

Control is from a standard wireless dimmer switch via the X-Comfort wireless mesh network.

Note - you must have a dimmable light bulb fitted to the lamp, energy saving lamps are not dimmable unless it is specifically stated.

40-250VA/230VAC, British Standard

CDAP-01/13

Technical Specifications

• Power supply 230VAC, 50Hz
• Plug system British Standard, with children protection
• Load 250W 230VAC, 50Hz, incandescent lamps or electronic transformers, Reversed phase control, Internal overload and short-circuit protection
• Pre-protection Power circuit breaker 16A, characteristic C
• Frequency 868,300 MHz
• Type of transmission Bi-directional, via coded telegrams
• Indoor range Typically 30 - 50m, 2 walls + 1 ceiling (depending on wall thickness and material !!)
• Degree of protection IP20
• Degree of soiling 2
• Operating temperature -5 to +45°C
• Storage /transportation temp. -25 to +70°C
• Colour of the frame White, similar to RAL9016
• Size of the frame HxWxD - 138 x 60 x 48mm
• Approval Printed onto the device
