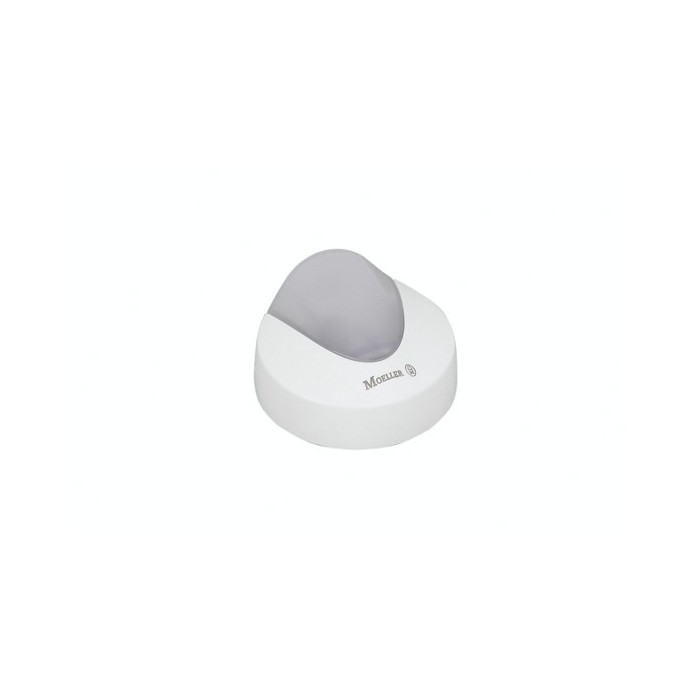

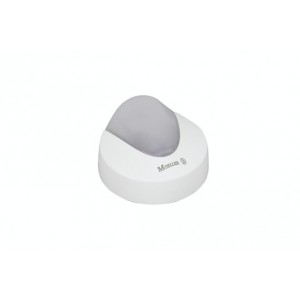

CSEZ-01/14 Brightness Sensor

Brightness Sensor - Indoor 0-10VDC The sensor measures the current light intensity and outputs it as an analogue 0-10VDC value (the higher the value, the higher the light intensity).

The brightness sensor has 4 measuring ranges that can be directly set via a jumper placed under the cover of the device: 3-300 lux, 30-3k lux, 300-30k lux, 600-60k lux.

In order to integrate the brightness sensor into Moeller’s RF system, the sensor must be connected to the 2-channel analogue input (112240). 24VDC power supply for the sensor is also provided for by the analogue input (Attention: Make sure the wiring and the setting on the analogue input are correct!)

CSEZ-01/14
